What is Reverse Engineering?

Reverse engineering is to obtain the point cloud data of the physical model by using the three-dimensional digital scanning of the existing physical model in the case that the design drawings are incomplete or even without the design drawings or CAD models, and the point cloud data is calculated and used. Processing is done to form a digital model for product redesign and CNC machining. A reverse engineering process includes two steps: the first step is to scan the physical model and the second step is to creat a three-dimensional model.

Get A Quote

Reverse Engineering Process

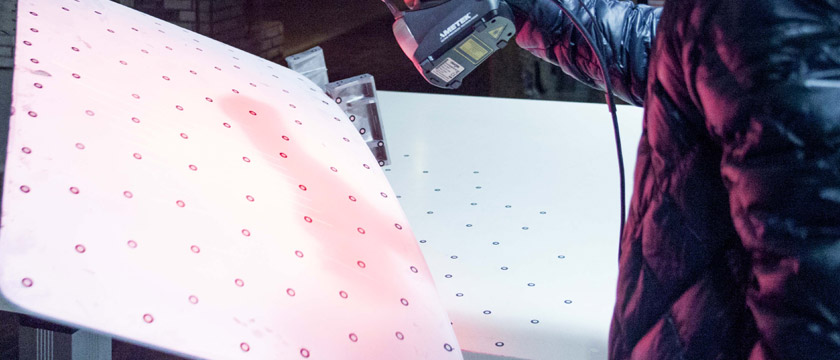

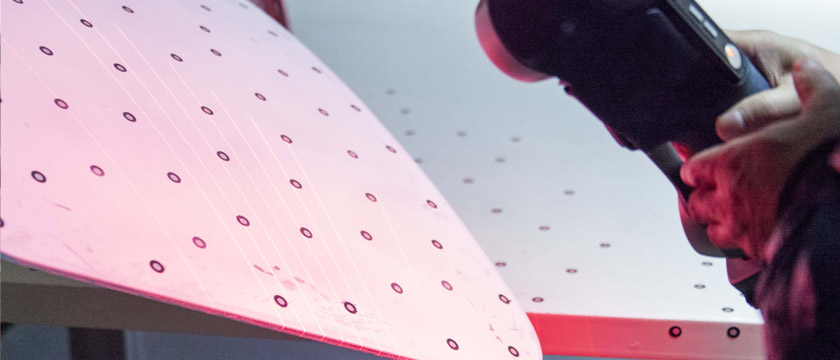

1. To obtain 3D date by 3D scanning for objects.

2. By generating point clouds, extracting features, and using reverse engineering software to have date processing for the point clouds.

3. Reverse modeling.

reverse modeling

4. Compare evaluation: To inspect the geometric error and make necessary modifications by using a variety of 3D engineering software.

Advantages of Reverse Engineering

To shorten the product design and development cycle, speed up the replacement speed of the products
To reduce the cost and risk of developing new products;
To speed up the geometric and Serialization Design for the products;
It is suitable for both single piece and small batch production, especially benefit for making molds.

Reverse Engineering Applicaitons

automotive manufacturing
aerospace
electronics
medical field
cultural relics
sculpture
construction
scientific research

Why Choose Us for Reverse Engineering Service?

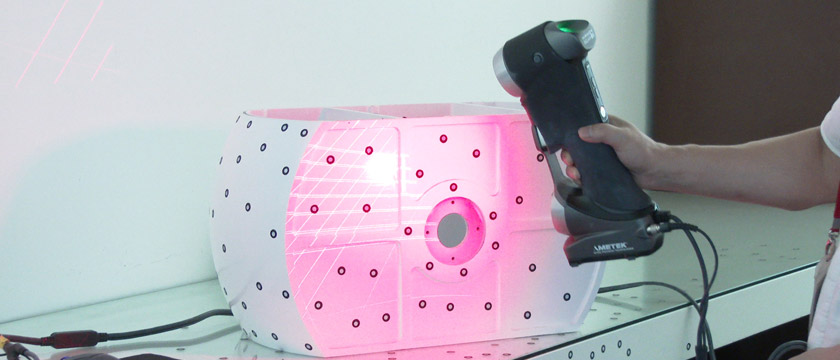

We have professional reverse engineers and advanced 3D laser scanners, which can quickly and easily obtain 3D data of scanned objects. Through professional 3D post software, we can accurately obtain various structures from curved threads to ribs and cavities. You can also convert 3D drawings into traditional and commonly used 2D engineering drawings through the corresponding software according to your own needs. You only need to provide us with a physical model, we can also come to the on-site service, let you experience professional services.

With more than 20 years of 3d scanning reverse engineering service and 3D copying experience, we have successfully provided professional reverse engineering services for customers in reverse engineering projects of automotive manufacturing, aerospace, mold manufacturing, electronics, consumer, medical, cultural relics, sculpture, construction, scientific research and other industries. The solution helps industry customers shorten the development cycle, increase production efficiency and improve product quality.

If you are looking for a professional and reliable service provider for 3d reverse engineering, please contact our professional team at [email protected] or contact us using the inquiry form on this website, we will provide quotes and suggestions free of charge.

Cases

Student Graduation Design Case Study of Expressway Inspection & Emergency Treatment Engineering Vehicles

According to the renderings and 3D model data provided by the customer, select the appropriate production process, the surface is finely processed and delivered on time.
Fitness Equipment Case Study

After analysis, it was found that the product was the appearance model, the adhesion of the final product
Mask Model Case Analysis

This project is mainly made by hot runner technology.hot runner is used in injection molds,a heating assembly system that injects molten plastic particles into a cavity of a mold.
Analysis of CNC Machining Case of Great Wall Automobile Hood

According to the provided 3D model data and specific production requirements, strictly control the quality to ensure that the production parts are matched with the real car.
